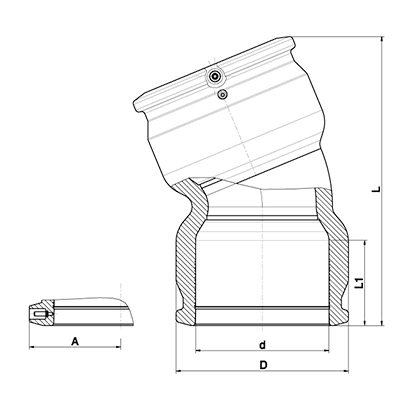

MDPE Electrofusion Elbow 22.5

• Type: Electrofusion Elbow – 22.5°
• Connection Type: Electrofusion socket x socket (equal diameter)
• Size Range: 90 - 180mm
• Material Composition: PE100 high-density polyethylene
• Pressure Rating: PN16 – 16 bar, gas - PE100 SDR 11
• Temperature Range: 0°C to +40°C (cold water applications)
• Terminal Pins: 4mm electrofusion terminals supplied
• Standards Compliance:
• BS EN 1555
• BS EN 12201
• WIS 4-32-14 & WIS 4-32-15
• Kiwa approved for use in drinking water systems
• Pipe Compatibility: MDPE pipe – same diameter

Installation Note: Use with compatible electrofusion welding control boxes

The MDPE Electrofusion Elbow 22.5° is designed to create a subtle directional change in MDPE pipework by joining two pipes of the same diameter via electrofusion. Suitable for potable water systems, this fitting allows a smooth 22.5° bend, helping to maintain flow characteristics while enabling alignment adjustments in confined spaces. Manufactured from durable PE100 polyethylene and Kiwa approved, it ensures long-term performance in both underground and above-ground installations. Supplied with 4mm terminal pins, it is compatible with standard electrofusion welding control units.

• 22.5° Directional Adjustment: Provides a smooth, controlled bend in the pipeline—ideal for minor alignment corrections.
• Permanent Electrofusion Joint: Leak-free, pressure-rated seal for long-term system integrity.
• Durable PE100 Body: Resists impact, chemical attack, and environmental stress—suitable for buried and exposed use.
• Certified for Potable Water: Kiwa approved and compliant with BS EN and WIS standards.
• Standardised Connection Pins: Supplied with 4mm terminal pins, compatible with all leading electrofusion units.
