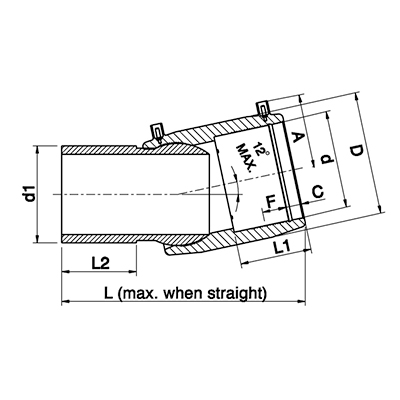

MDPE Electrofusion Adjustable Elbow 1-Sided

• Type: Electrofusion Adjustable Elbow – 1-Sided (up to 12°)
• Connection Type: Electrofusion socket x socket (equal diameter)
• Size Range: 90 - 250mm
• Material Composition: PE100 high-density polyethylene
• Pressure Rating: PN16 – 16 bar, gas - PE100 SDR 11
• Temperature Range: 0°C to +40°C (cold water systems)
• Terminal Pins: 4mm electrofusion terminals supplied
• Adjustable Angle: One side adjustable up to 12°
• Standards Compliance:
• BS EN 1555
• BS EN 12201
• WIS 4-32-14 & WIS 4-32-15
• Kiwa approved
• Pipe Compatibility: MDPE pipe – same diameter

Installation Note: Adjust angle before welding; compatible with all standard control boxes

The MDPE Electrofusion Adjustable Elbow 1-Sided is designed to join two MDPE pipes of the same diameter via electrofusion, while enabling a controlled directional change of up to 12° on one side. This flexibility makes it ideal for installations where precise alignment is required or where pipework needs to follow a slightly offset route. Once fused, the angle becomes fixed, ensuring a high-integrity, leak-free connection. Made from PE100 polyethylene and Kiwa approved, this fitting is suitable for potable water applications and is supplied with 4mm terminal pins for compatibility with standard electrofusion welding units.

• One-Sided Adjustability: Allows up to 12° of angular adjustment on one side for precise pipe alignment.
• Electrofusion Connection: Creates a permanent, pressure-resistant seal—ideal for potable water systems.
• High-Integrity PE100 Material: Provides exceptional durability and resistance to impact and environmental stress.
• Kiwa Certified: Approved for use in regulated drinking water systems, ensuring quality and safety.
• Supplied Ready to Weld: 4mm terminal pins ensure compatibility with standard electrofusion equipment.
• Space-Saving Design: Perfect for tight installations where minor adjustments are needed without re-routing.
