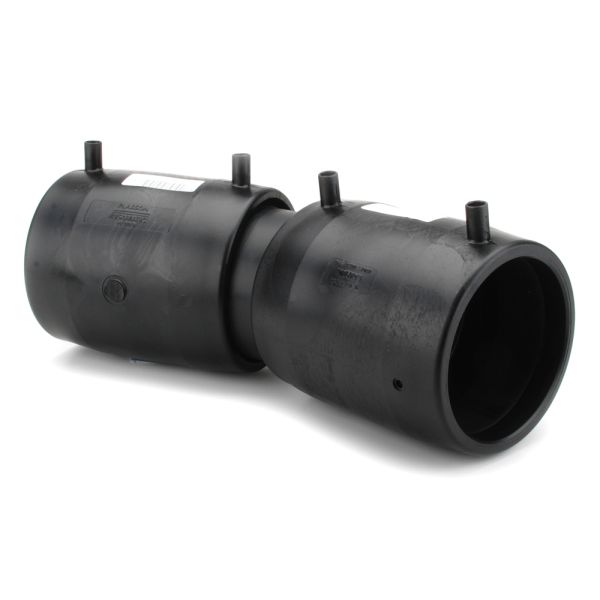

MDPE Electrofusion Adjustable Elbow

• Type: Electrofusion Adjustable Elbow (up to 24°)
• Connection Type: Electrofusion socket x socket (equal diameter)
• Size Range: 90 - 250mm
• Material Composition: PE100 high-density polyethylene
• Pressure Rating: PN16 – 16 bar, gas - PE100 SDR 11
• Temperature Range: 0°C to +40°C (cold water systems)
• Terminal Pins: 4mm electrofusion terminals supplied

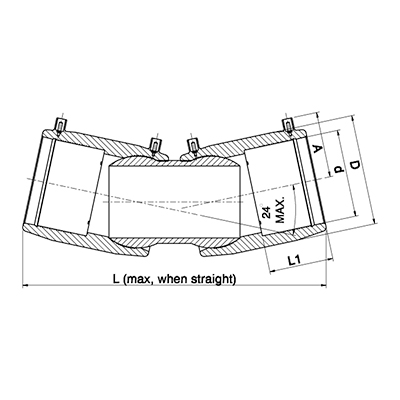

• Adjustable Angle: Up to 24°, fixed once welded
• Standards Compliance:
• BS EN 1555
• BS EN 12201
• WIS 4-32-14 & WIS 4-32-15
• Kiwa approved
• Pipe Compatibility: MDPE pipe – same diameter

Installation Note: Use with standard electrofusion control units; adjust angle before fusion

The MDPE Electrofusion Adjustable Elbow is designed to join two equal-diameter MDPE pipes via electrofusion, offering flexible alignment with an adjustable angle of up to 24°. Once welded, the joint becomes fixed, providing a strong and leak-free directional change. Ideal for complex installations where precise pipe orientation is required, this fitting is made from PE100 polyethylene and Kiwa approved for use in potable water systems. Supplied with 4mm terminal pins, it is fully compatible with standard electrofusion welding control boxes.

• Adjustable up to 24°: This is ideal for non-linear pipe routes, as it allows flexibility to achieve the perfect angle before welding.
• Permanent Electrofusion Seal: Delivers high-integrity, leak-free joints in water systems.
• Durable PE100 Construction: Engineered for strength, chemical resistance, and long service life.
• Potable Water Certified: Fully Kiwa approved and compliant with BS EN and WIS standards.
• Quick Installation: Supplied with 4mm terminal pins, with standard fusion equipment ready for use.
• Versatile Application: Suitable for above- and below-ground water infrastructure where precise alignment is required.
