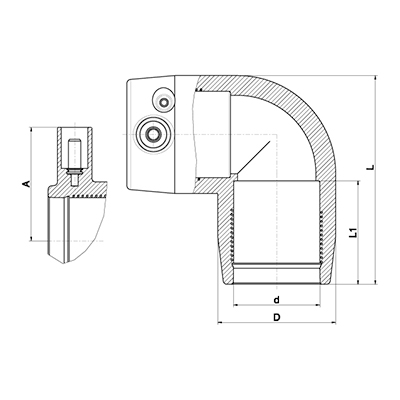

MDPE Electrofusion Elbow 90

• Type: Electrofusion Elbow 90°
• Connection Type: Electrofusion socket x socket (equal diameter)
• Size Range: 20 - 250mm
• Material Composition: PE100 high-density polyethylene
• Pressure Rating: PN16 – 16 bar, gas - PE100 SDR 11
• Temperature Range: 0°C to +40°C (cold water and gas systems)
• Terminal Pins: 4mm electrofusion pins supplied
• Standards Compliance:
• BS EN 1555 (Gas applications)
• BS EN 12201 (Water applications)
• WIS 4-32-14 & WIS 4-32-15
• Kiwa approved for potable water
• Pipe Compatibility: MDPE pipe – same diameter

Installation Note: Use with standard electrofusion control boxes

The MDPE Electrofusion Elbow 90° is designed to connect two lengths of MDPE pipe at a right angle using the electrofusion process. Ideal for directional changes in potable water and gas distribution systems, this fitting provides a permanent, high-integrity joint that’s resistant to leaks and pressure fluctuations. Manufactured from PE100 polyethylene and Kiwa approved, it is suitable for both above- and below-ground applications. Supplied with 4mm terminal pins, it is compatible with standard electrofusion control units.

• 90° Directional Change: Perfect for pipeline bends in tight or complex layouts.
• Permanent Electrofusion Joint: Provides a secure, leak-free seal suitable for high-pressure systems.
• High-Strength PE100 Body: Robust construction ensures long-term performance and resistance to corrosion.
• Certified for Utility Applications: Fully compliant with UK and European standards for gas and potable water systems.
• Compatible with Standard Equipment: Supplied with 4mm pins for use with widely available electrofusion welding units.
• Kiwa Approved: Trusted for use in regulated drinking water networks.
