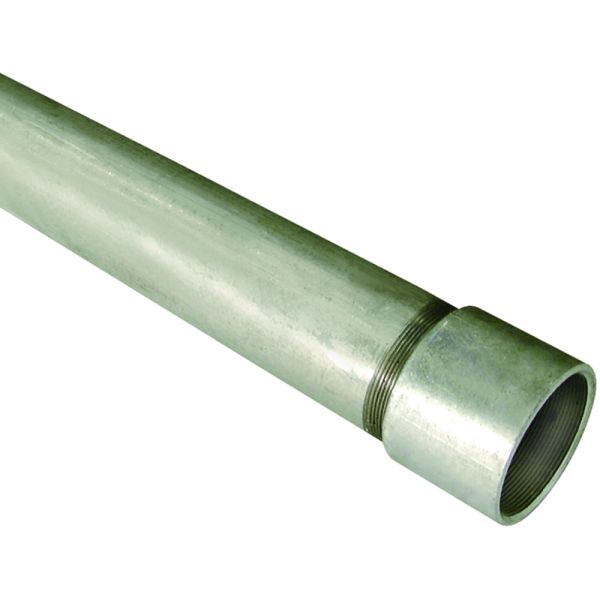

Galvanised Heavy Grade
Click on the image to activate zoom.
All text and product images are the intellectual property and copyright of Pipestock Limited
Key Features / Tech Specs & Dimensions:
- Material: steel (hot dipped galvanised)
- Maximum operating pressure: 50 bar
- Conform to EN 10255, EN 10217-1, BS1387 standards
- Male BSP threads
- Supplied with threaded socket
| Product Code | Nominal Bore (inch) | Nominal Bore (mm) | Max. OD (mm) | Min. OD (mm) | Wall Thickness (mm) | Weight per Metre (kg) | Length (m) |
| 363807 | ½ | 15 | 21.8 | 21 | 3.2 | 1.45 | 3.2 |
| 363819 | ½ | 15 | 21.8 | 21 | 3.2 | 1.45 | 6.4 |
| 363808 | ¾ | 20 | 27.3 | 26.5 | 3.2 | 1.88 | 3.2 |
| 363820 | ¾ | 20 | 27.3 | 26.5 | 3.2 | 1.88 | 6.4 |
| 363809 | 1 | 25 | 34.2 | 33.3 | 4 | 2.95 | 3.2 |
| 363821 | 1 | 25 | 34.2 | 33.3 | 4 | 2.95 | 6.4 |
| 363810 | 1¼ | 32 | 42.9 | 42 | 4 | 3.82 | 3.2 |
| 363822 | 1¼ | 32 | 42.9 | 42 | 4 | 3.82 | 6.4 |
| 363811 | 1½ | 40 | 48.8 | 47.9 | 4 | 4.41 | 3.2 |
| 363823 | 1½ | 40 | 48.8 | 47.9 | 4 | 4.41 | 6.4 |
| 363812 | 2 | 50 | 60.8 | 59.7 | 4.5 | 6.26 | 3.2 |
| 363824 | 2 | 50 | 60.8 | 59.7 | 4.5 | 6.26 | 6.4 |
If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!
