Cross

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Female BSPT thread
  • EN 10226-2
  • Sizes available: ¼" to 2 ½"

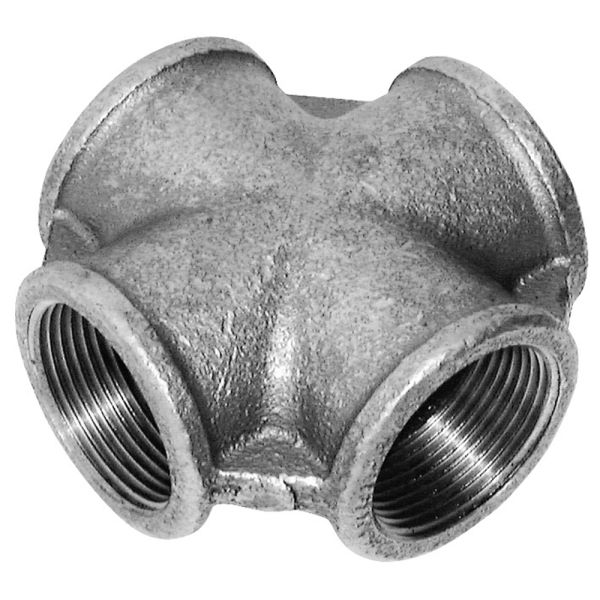

Malleable Iron Cross

Product Code Diameter (inch) A (mm) Weight (kg)
363424 ¼ - -
363425 25 0.098
363426 ½ 28 0.151
363427 ¾ 33 0.222
363428 1 38 0.360
363429 1 ½ 50 0.810
363430 2 58 1.191
363431 2 ½ 69 1.609



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363424MLB IRN CR Cross Female Galv. 1/4" £19.35 33% £12.96
363425MLB IRN CR Cross Female Galv. 3/8" £21.35 33% £14.30
363426MLB IRN CR Cross Female Galv. 1/2" £17.45 33% £11.69
363427MLB IRN CR Cross Female Galv. 3/4" £28.30 33% £18.96
363428MLB IRN CR Cross Female Galv. 1" £35.90 33% £24.05
363429MLB IRN CR Cross Female Galv. 1 1/2" £68.95 33% £46.20
363430MLB IRN CR Cross Female Galv. 2" £107.15 33% £71.79
363431MLB IRN CR Cross Female Galv. 2 1/2" £152.95 33% £102.48
