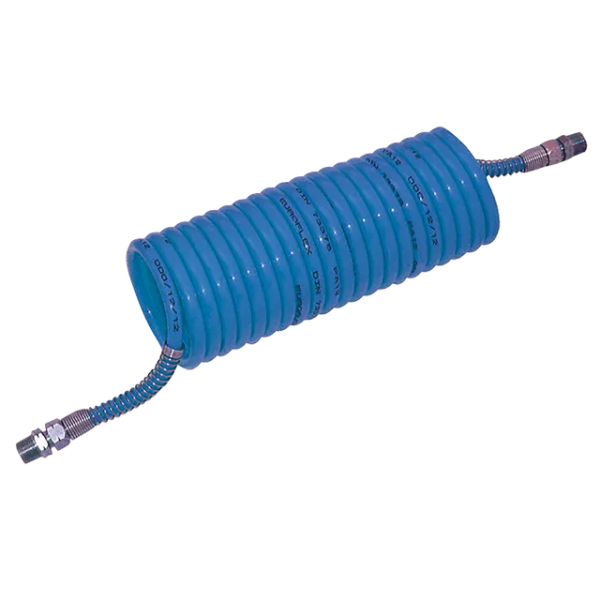

Polyurethane Anti-Spatter Recoil Tube

Polyurethane Anti-Spatter Recoil Tube

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Polyurethane anti-spatter recoil tube assembly
  • Material: PVC/Polyurethane
  • Operating temperature: -40°C to +70°C
  • Working pressure: 3 to 1 safety factor
  • 1/4" male BSPT thread end connections

Air-Pro Polyurethane Anti-spatter tube diagram

Product Code D2 (mm) D1 (mm) Working Pressure (bar/psi) R1 (mm)
377875 4 6 11/159 20
377876 5 8 13/188 30
377877 6.5 10 11/159 35



Useful Info:

This polyurethane anti-spatter recoil tube is used for the conveyance of air and water in robotic and pneumatic air lines, welding tubing lines, injecting moulding cooling lines and automotive assembly lines.

Highly abrasion resistant alloy jacket, with smooth non-marking pin-priced cover and excellent flexibility over a wide temperature range.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
Air-Pro PU Anti-Spatter Recoil Tube Ass. Blue 4m x 4mm x 6mm
Code
377875
Product Name
Air-Pro PU Anti-Spatter Recoil Tube Ass. Blue 4m x 4mm x 6mm
List Price
£33.35
You Pay
£23.35
You Save
30%
Qty
Air-Pro PU Anti-Spatter Recoil Tube Ass. Blue 4m x 5mm x 8mm
Code
377876
Product Name
Air-Pro PU Anti-Spatter Recoil Tube Ass. Blue 4m x 5mm x 8mm
List Price
£46.00
You Pay
£32.20
You Save
30%
Qty
Air-Pro PU Anti-Spatter Recoil Tube Ass. Blue 4m x 6.5mm x 10mm
Code
377877
Product Name
Air-Pro PU Anti-Spatter Recoil Tube Ass. Blue 4m x 6.5mm x 10mm
List Price
£57.45
You Pay
£40.22
You Save
30%
Qty
3 products
