Oil
Useful Information
Technical Specification

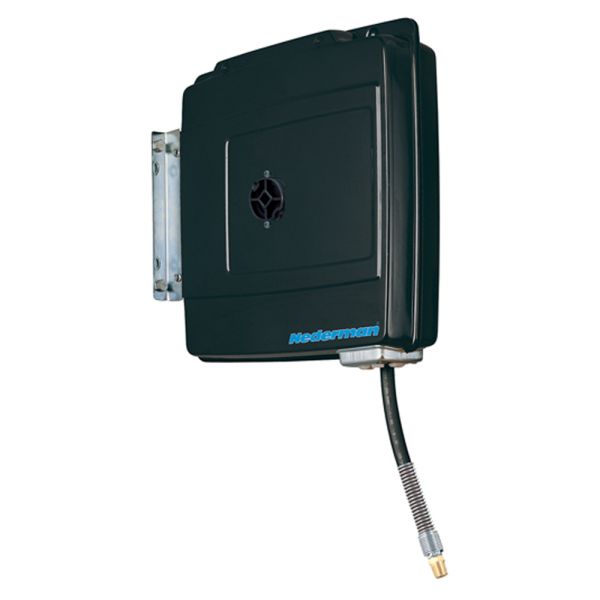

- Type: Self-retracting medium duty hose reel
- Application: Oil delivery
- Hose Capacity: Up to 15 metres
- Hose ID: 1/2"
- Inlet Size: 1/2" BSPP Female
- Maximum Working Pressure: 75 bar (7.5 MPa / 1090 psi)
- Working Temperature: -40°C to +100°C
- Weight: Approx. 15kg
- Series: 883
Description
Designed specifically for oil applications, this robust medium-duty hose reel is ideal for use in garages, vehicle service centres, and maintenance workshops. The fully enclosed housing protects the internal components while supporting reliable, high-pressure operation. Its external spring tension adjustment enables quick retraction tuning without disassembly, and the design allows for fast, straightforward servicing and hose replacement. Available as a bare reel or pre-fitted with hose, it provides flexible installation options to suit different workshop requirements.
Key Features & Benefits
- Oil-Specific Performance: Built for high-pressure oil delivery in demanding environments
- High Pressure Rated: Handles up to 75 bar, suitable for intensive service operations
- External Tension Adjustment: Spring force can be adjusted without opening the reel
- Fully Enclosed Casing: Protects reel components and enhances safety
- Service-Friendly Design: Hose can be replaced quickly without reel dismantling
- Temperature Resilience: Operates reliably in extreme conditions from -40°C to +100°C
- Flexible Setup: Offered with or without pre-fitted hose for installation versatility
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
