Technical Specification
- Type: Self-retracting medium duty hose reel / bare hose reel
- Application: Compressed air and water
- Available Hose Lengths: 10m or 15m
- Hose ID Options: 3/8" or 1/2"
- Maximum Working Pressure: 15 bar (1.5 MPa / 220 psi)
- Temperature Range: -30°C to +100°C
- Mounting Options: Wall, ceiling, or floor
- Weight: Approx. 15kg
- Series: 883
Description

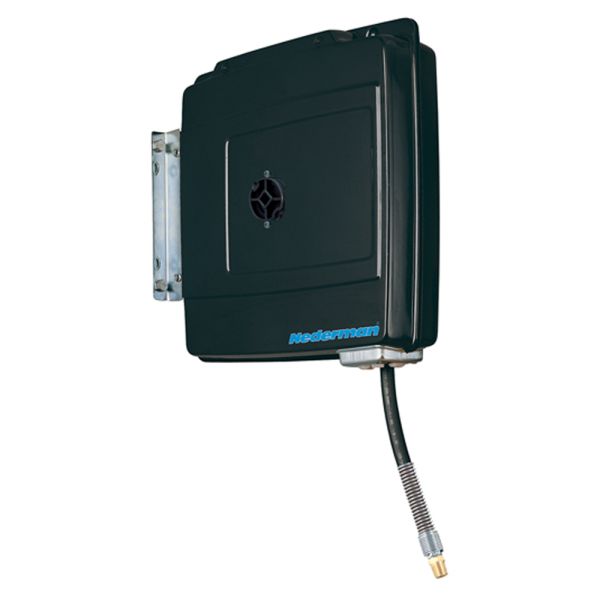

Engineered for medium-duty performance, this enclosed hose reel is ideal for delivering compressed air and water in automotive workshops, garages, and maintenance facilities. Its durable construction supports demanding daily use while offering convenient operation. The external spring tension adjustment ensures easy retraction control without the need to dismantle the reel. Available in both bare and pre-assembled options, with capacities up to 15 metres, the reel supports straightforward installation and flexible mounting configurations.
Key Features & Benefits
- Industrial Performance: Designed for use with air and water in workshop environments
- Flexible Options: Supplied bare or fully assembled with hose, in multiple sizes
- External Spring Adjustment: Quick tension tuning without disassembly
- Service-Friendly: Hose can be replaced easily without removing the reel
- High Temperature Tolerance: Operates reliably from -30°C to +100°C
- Robust Enclosure: Fully encased for enhanced durability and safety
- Versatile Mounting: Compatible with wall, ceiling, or floor setups
| Product Code | Hose Capacity (m) | Hose ID (inch) | Max. Pressure Mpa (psi) | Include Hose? | Application | Approx Weight (kg) |
| 375063 | 15 | 3/8 | 1.5 (220) | Yes | Compressed air & Water | 15 |
| 375064 | 15 | 3/8 | 1.5 (220) | No | Compressed air & Water | 15 |
| 375065 | 10 | 1/2 | 1.5 (220) | No | Compressed air & Water | 15 |
| 375066 | 10 | 1/2 | 1.5 (220) | Yes | Compressed air & Water | 15 |
