3-Way Ball Valve L-Port FPM Plain

3-Way Ball Valve L-Port FPM Plain

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Manufacturer: Durapipe
  • Seal material: fluoro rubber
  • Size range from 20mm to 63mm
  • Operating pressure rated to 10 bar

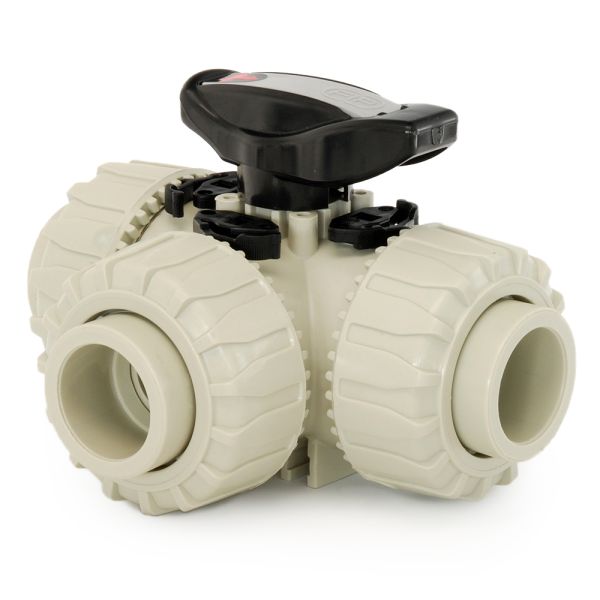

Durapipe Polypropylene 3-Way L-Port Ball Valve FPM Plain

Product Code d (mm) DN (mm) B (mm) B1 (mm) C (mm) C1 (mm) E (mm) H (mm) H1 (mm) L (mm) Z (mm) Weight (g)
354654 20 15 54 29 67 40 54 144 80 16 112 310
354655 25 20 65 34.5 85 49 65 158 100 18 122 550
354656 32 25 69.5 39 85 49 73 183.5 110 20.5 142.5 790
354657 40 32 82.5 46 108 64 86 219 131 23.5 172 1275
354658 50 40 89 52 108 64 98 266.5 148 27.5 211.5 1660
354659 63 50 108 62 134 76 122 266.5 179 38 190.5 2800



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Technical Info:

Working Positions:

Durapipe VKD 3-Way Ball Valve Working Positions

Useful Info:

This Durapipe VKD 3-way ball valve features the patented DualBlock locking system, which ensures the union nuts remain fully retained in position, regardless of thermal expansion or vibration.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!
