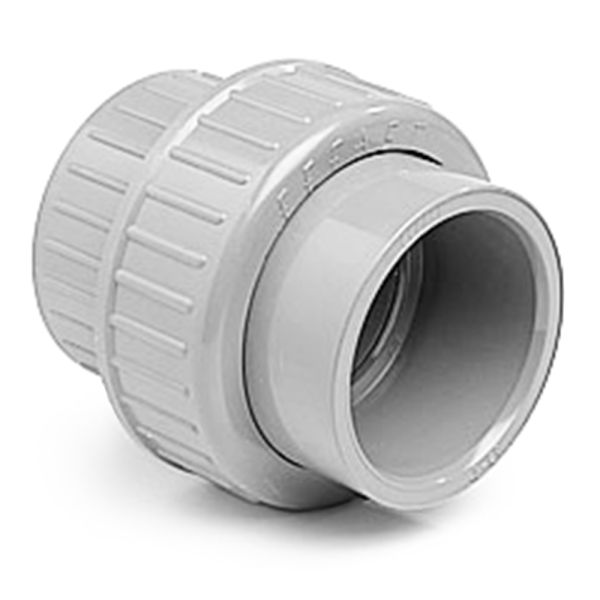

Union

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride resin and chlorine
  • Plain union fitting
  • Pressure rated to 16 bar
  • Manufactured to DIN 8063
  • Available in sizes from 20mm to 160mm

DP PVCc union plain diagram

Product Code A (mm) B (mm) Z1 (mm) Pressure Rating (bar)
351158 33 41 13 16
351159 41 45 13 16
351160 50 51 13 16
351161 58 57 13 16
351162 72 67 15 16
351163 79 79 17 16
351164 98 98 22 16



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

Used to join together two pieces of Corzan CPVC pipe of the same dimensions with the ability for future connection or disconnection. PVCc solvent cement should be used along with PVCc Eco-Cleaner to glue the pipe together.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
351158DP PVCc Union Plain 16mm £17.52 30% £12.26
351159DP PVCc Union Plain 20mm £19.45 30% £13.62
351160DP PVCc Union Plain 25mm £22.04 30% £15.43
351161DP PVCc Union Plain 32mm £30.77 30% £21.54
351162DP PVCc Union Plain 40mm £36.41 30% £25.49
351163DP PVCc Union Plain 50mm £51.19 30% £35.83
351164DP PVCc Union Plain 63mm £81.01 30% £56.71
