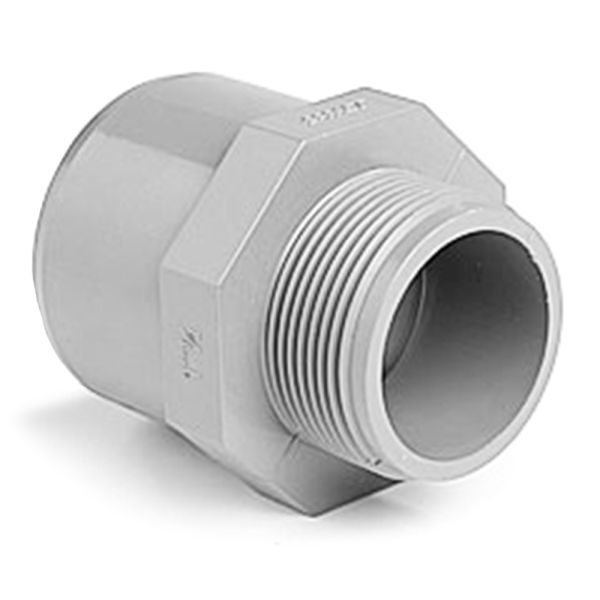

Nipple Plain x Male BSP

Nipple Plain x Male BSP

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride resin and chlorine
  • Nipple plain/male bsp thread fitting
  • Pressure rated to 16 bar
  • Manufactured to DIN 8063
  • Available in sizes from 16mm x 20mm 38" to 63mm x 75mm x 2"

dp nipple plain male bsp thread diagram

Product Code A (mm) B (mm) Z1 (mm) Pressure Rating (bar)
351130 22 34 20 16
351131 28 41 25 16
351132 34 46 27 16
351133 42 52.5 30.5 16
351134 52 61 35 16
351135 65 66 35 16
351136 75 79 41 16



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These adaptors are used to add a female thread connection to a Corzan CPVC pipe

The plain end should be fixed to the pipe using PVCc solvent cement along with PVCc Eco-Cleaner

The threaded male end will connect to a standard female bsp threaded fitting.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
DP PVCc Nipple Plain / Male BSP Thread 16mm x 20mm x 3/8"
Code
351130
Product Name
DP PVCc Nipple Plain / Male BSP Thread 16mm x 20mm x 3/8"
List Price
£5.85
You Pay
£4.10
You Save
30%
Qty
DP PVCc Nipple Plain / Male BSP Thread 20mm x 25mm x 1/2"
Code
351131
Product Name
DP PVCc Nipple Plain / Male BSP Thread 20mm x 25mm x 1/2"
List Price
£5.85
You Pay
£4.10
You Save
30%
Qty
DP PVCc Nipple Plain / Male BSP Thread 25mm x 32mm x 3/4"
Code
351132
Product Name
DP PVCc Nipple Plain / Male BSP Thread 25mm x 32mm x 3/4"
List Price
£6.76
You Pay
£4.73
You Save
30%
Qty
DP PVCc Nipple Plain / Male BSP Thread 32mm x 40mm x 1"
Code
351133
Product Name
DP PVCc Nipple Plain / Male BSP Thread 32mm x 40mm x 1"
List Price
£7.69
You Pay
£5.38
You Save
30%
Qty
DP PVCc Nipple Plain / Male BSP Thread 40mm x 50mm x 1 1/4"
Code
351134
Product Name
DP PVCc Nipple Plain / Male BSP Thread 40mm x 50mm x 1 1/4"
List Price
£9.88
You Pay
£6.92
You Save
30%
Qty
DP PVCc Nipple Plain / Male BSP Thread 63mm x 75mm x 2"
Code
351136
Product Name
DP PVCc Nipple Plain / Male BSP Thread 63mm x 75mm x 2"
List Price
£19.85
You Pay
£13.90
You Save
30%
Qty
6 products
