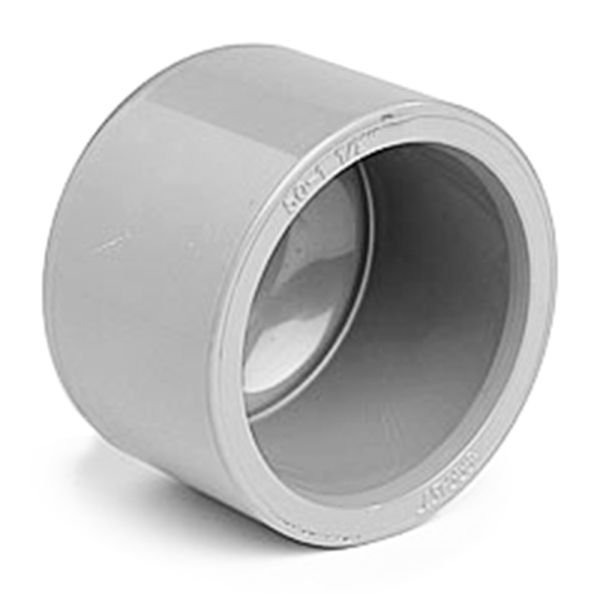

End Cap

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride resin and chlorine
  • Plain end cap fitting
  • Pressure rated to 16 bar
  • Manufactured to DIN 8063
  • Available in sizes from 20mm to 160mm

DP PVCc end cap plain diagram

Product Code A (mm) B (mm) Pressure Rating (bar)
351121 28 23 16
351122 34 27 16
351123 41 31 16
351124 51 36 16
351125 62 43 16
351126 77 51 16
351127 91 59 16
351128 110 69 16
351129 132 83 16



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These pvcc plain end caps are used to cap off a single piece of Corzan CPVC pipe of the same dimensions. PVCc solvent cement should be used along with PVCc Eco-Cleaner to glue the pipe together.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
351121DP PVCc End Cap Plain 20mm £3.71 30% £2.60
351122DP PVCc End Cap Plain 25mm £5.03 30% £3.52
351123DP PVCc End Cap Plain 32mm £7.51 30% £5.26
351124DP PVCc End Cap Plain 40mm £10.52 30% £7.36
351125DP PVCc End Cap Plain 50mm £14.96 30% £10.47
351126DP PVCc End Cap Plain 63mm £20.48 30% £14.34
351127DP PVCc End Cap Plain 75mm £51.19 30% £35.83
351128DP PVCc End Cap Plain 90mm £51.19 30% £35.83
351129DP PVCc End Cap Plain 110mm £76.00 30% £53.20
