Tee 90° Plain x Thread F

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: Acrylonitrile Butadiene Styrene
  • WRAS approved product (approval number 1703070)
  • Threaded end is standard BSP

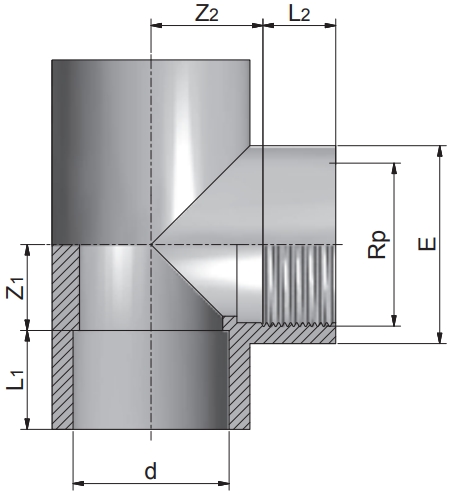

ABS-threaded-tee-90-Diagram


Product Code Nominal Size (inch) L1 (mm) L2 (mm) Z1 (mm) Z2 (mm) E (mm)
353274 1/2 17 15 11 12 28
353275 3/4 20 16 14 17 34
353276 1 23 19 17 20 42
353277 1 1/4 27 21 21 27 51
353278 1 1/2 32 21 26 37 61
353279 2 39 26 33 46 75
353280 3 51 35 47 66 106



Useful Info:

Used to join together three pieces of ABS pipe of the same dimensions at an angle of 90°. ABS solvent cement should be used along with cleaner to glue the plain ends and the pipes together.

Please note, the WRAS approval for this fitting only covers use above ground and a maximum operating pressure of 15 bar.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
353274ABS Tee 90 Plain x Threaded Branch 1/2" £9.80 77% £2.25
353275ABS Tee 90 Plain x Threaded Branch 3/4" £10.85 77% £2.50
353276ABS Tee 90 Plain x Threaded Branch 1" £13.12 77% £3.02
353277ABS Tee 90 Plain x Threaded Branch 1 1/4" £27.52 77% £6.33
353278ABS Tee 90 Plain x Threaded Branch 1 1/2" £30.30 77% £6.97
353279ABS Tee 90 Plain x Threaded Branch 2" £42.63 77% £9.80
353280ABS Tee 90 Plain x Threaded Branch 3" £83.64 77% £19.24
