Approvals: WRAS approval 1703070 where applicable, BSI Kitemark KM60042 for selected sizes
Temperature range: -40°C to 60°C
Standards: BS 5391, BS 5392, EN 10226 1, DIN 2999, DIN DVS 2204 3
Chemical resistance: Resistant to diluted inorganic acids, salts, animal fats, oils and organic acids, not resistant to organic solvents, alcohol, petrol, acetic acid or vegetable oils
Applications: Food and beverage processing, water treatment, sewerage systems and general industrial pipework
Description
This 90 degree tee allows three ABS pipes of the same size to be joined together, creating a reliable branch connection within a pressure or process pipeline. When installed using ABS solvent cement and cleaner, it forms a strong permanent joint that maintains system integrity while supporting efficient directional flow. Manufactured from high quality ABS, the fitting provides excellent impact resistance, low moisture absorption and consistent performance across a wide temperature range. Its lightweight yet rigid construction ensures straightforward handling and accurate alignment on site.
Key Features & Benefits
Reliable branch connection: Joins three equal sized ABS pipes at 90 degrees
Permanent solvent welded joint: Provides a strong secure connection using ABS solvent cement
Lightweight and rigid: Easy to handle with dependable structural stability
Durable ABS construction: High impact strength for long term performance
Chemical resistance: Suitable for many diluted industrial chemicals
WRAS and Kitemark approved: Meets recognised UK quality and safety standards
Optimised internal geometry: Helps maintain efficient flow through the branch

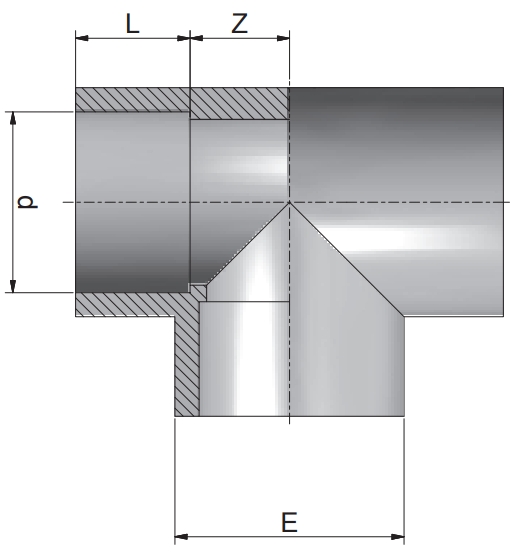

Product Code
Nominal Size (inch)
L (mm)
Z (mm)
E (mm)
353262
1/2
17
11
28
353263
3/4
20
14
34
353264
1
23
17
42
353265
1 1/4
27
21
51
353266
1 1/2
32
26
61
353267
2
38
33
75
353268
2 1/2
44
39
89
353269
3
51
47
106
353270
4
63
57
133
353271
5
76
71
163
353272
6
90
81
198
353273
8
119
114
258
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
