Tee 45° Plain

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: acrylonitrile butadiene styrene
  • WRAS approved product (approval number 1703070) - 1", 1 1/2", 2" only

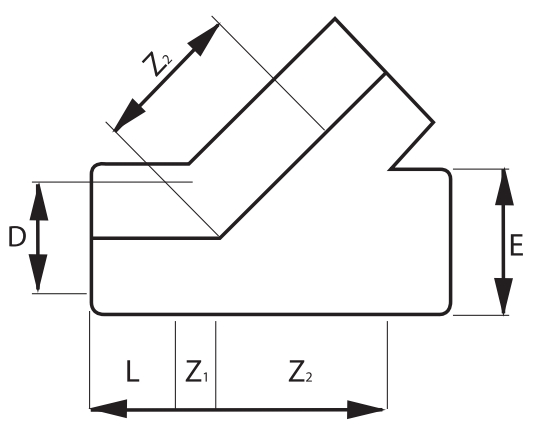

ABS-tee-45-Diagram


Product Code Nominal Size (inch) L (mm) Z (mm) Z2 (mm) E (mm)
353281 1/2 17 7 29 27
353283 1 23 8 44 42
353284 1 1/4 27 10 55 50
353285 1 1/2 31 12 65 61
353286 2 38 14 85 74



Useful Info:

Used to join together three pieces of ABS pipe of the same dimensions at an angle of 45°. ABS solvent cement should be used along with cleaner to glue the pipe together.

Please note, the WRAS approval for this fitting only covers use above ground and a maximum operating pressure of 15 bar.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
353281ABS Tee 45 Plain 1/2" £9.80 77% £2.25
353283ABS Tee 45 Plain 1" £16.78 77% £3.86
353284ABS Tee 45 Plain 1 1/4" £14.24 77% £3.28
353285ABS Tee 45 Plain 1 1/2" £29.61 77% £6.81
353286ABS Tee 45 Plain 2" £55.28 77% £12.71
