ABS Tank Connector Plain x Thread

Useful Information

Our ABS tank connector plain M x thread F fittings are available in sizes 1/2" to 6".

The plain end can be cemented to any ABS pipe fitting or valve that has plain female ends using ABS solvent cement and should always be used along with cleaner to create secure connections.

This Tank Connector includes two threaded nuts and a single gasket.

Threaded end included in this fitting is standard BSP.

Plain spigot end.



Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approval 1703070 (where applicable)

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approved

Licence number KM60042

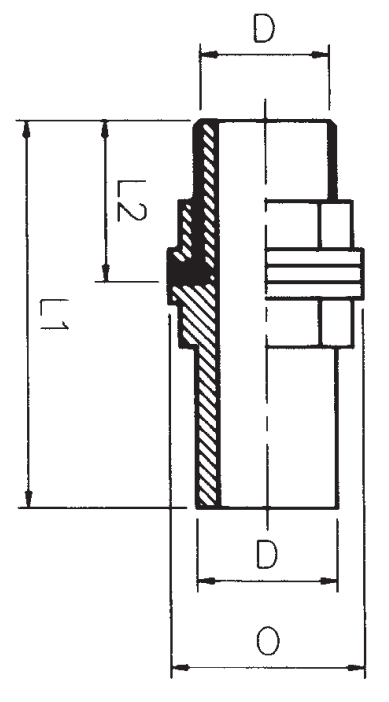

ABS-Tank-connector-Diagram

Product Code Nominal Size (inch) L1 (mm) L2 (mm) O (mm)
353252 1/2 77 42 38
353253 3/4 77 42 42
353254 1 103 55 55
353255 1 1/4 121 70 65
353256 1 1/2 128 73 72
353257 2 154 82 93
353258 2 1/2 164 94 106
353259 3 202 110 125
353260 4 230 140 154





IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
353252ABS Tank Connector Plain x Threaded 1/2" £25.60 77%
£5.89
353253ABS Tank Connector Plain x Threaded 3/4" £30.72 77%
£7.07
353254ABS Tank Connector Plain x Threaded 1" £77.38 77%
£17.80
353255ABS Tank Connector Plain x Threaded 1 1/4" £123.26 77%
£28.35
353256ABS Tank Connector Plain x Threaded 1 1/2" £146.20 77%
£33.63
353257ABS Tank Connector Plain x Threaded 2" £168.42 77%
£38.74
353258ABS Tank Connector Plain x Threaded 2 1/2" £221.32 77%
£50.90
353259ABS Tank Connector Plain x Threaded 3" £288.94 77%
£66.46
353260ABS Tank Connector Plain x Threaded 4" £335.69 77%
£77.21
