Socket Plain x Thread F

Useful Information

Our ABS socket plain x threaded F fittings are available in sizes 1/2" to 3".

Used to join together a piece of plain ABS pipe to a male threaded piece of pipe of the same dimensions. ABS solvent cement should be used along with cleaner to glue the pipe together.

Threaded end included in this fitting is standard BSP.



Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approval 1703070 (where applicable)

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approved

Licence number KM60042

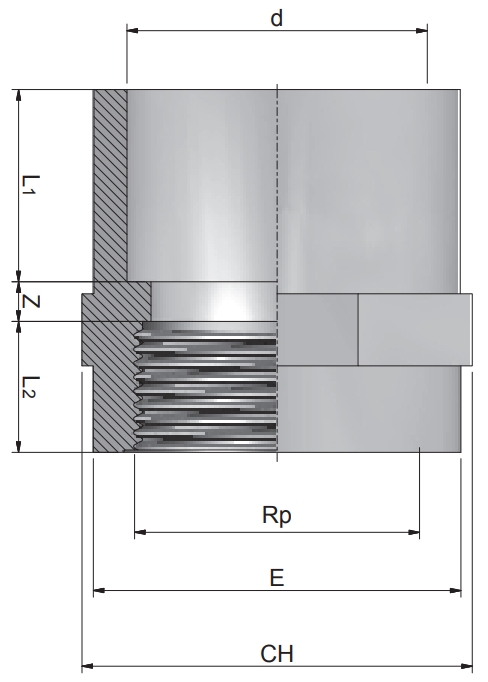

ABS-threaded-socket-Diagram

Product Code Nominal Size (inch) L1 (mm) L2 (mm) Z (mm) E
353167 1/2 17 15 4 28
353168 3/4 20 16 6 34
353169 1 23 19 6 42
353170 1 1/4 27 21 8 51
353171 1 1/2 32 21 13 61
353172 2 39 26 15 89
353173 3 52 33 9 106



IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
353167ABS Socket Plain x Threaded 1/2" £10.49 77% £2.41
353168ABS Socket Plain x Threaded 3/4" £11.64 77% £2.68
353169ABS Socket Plain x Threaded 1" £14.53 77% £3.34
353170ABS Socket Plain x Threaded 1 1/4" £22.70 77% £5.22
353171ABS Socket Plain x Threaded 1 1/2" £26.53 77% £6.10
353172ABS Socket Plain x Threaded 2" £34.92 77% £8.03
353173ABS Socket Plain x Threaded 3" £95.45 77% £21.95
