Reducing Bush Plain

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: Acrylonitrile Butadiene Styrene
  • WRAS approved product (approval number 1703070)

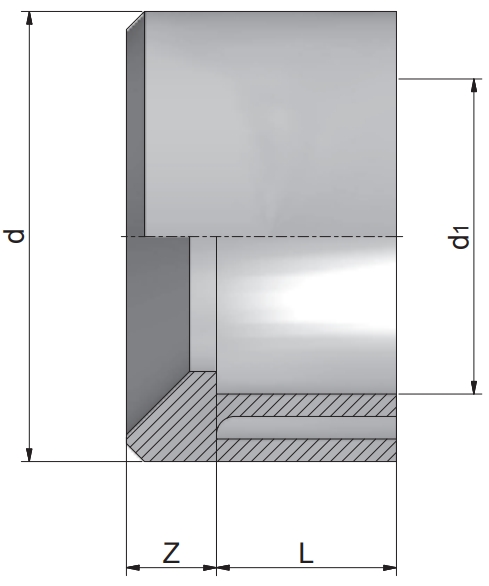

ABS-REDUCING-BUSH-Diagram


Product Code Nominal Size (inch) L1 (mm) L2 (mm) Z (mm) Fig
353199 3/4 x 1/2 20 17 3 A
353200 1 x 1/2 20 17 6 B
353201 1 x 3/4 23 20 3 A
353202 1 1/4 x 1 27 23 4 A
353203 1 1/2 x 3/4 32 20 12 B
353204 1 1/2 x 1 32 23 9 B
353205 1 1/2 x 1 1/4 32 27 5 A
353206 2 x 1 39 23 16 B
353207 2 x 1 1/4 39 27 12 B
353208 2 x 1 1/2 39 32 7 A
353209 2 1/2 x 2 44 39 5 A
353210 3 x 1 1/2 52 32 20 B
353211 3 x 2 52 39 13 B
353212 3 x 2 1/2 52 44 8 A
353213 4 x 2 63 39 24 B
353214 4 x 3 63 52 11 A
353215 5 x 4 77 65 12 A
353216 6 x 4 90 63 27 B
353217 8 x 6 118 91 27 B



Useful Info:

In order to reduce down one side of an ABS fitting, a plain ABS reducing bush can be glued inside the fitting socket with solvent cement.

Please note, the WRAS approval for this fitting only covers use above ground and a maximum operating pressure of 15 bar.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
353199ABS Reducing Bush Plain 3/4" x 1/2" £2.24 77% £0.52
353200ABS Reducing Bush Plain 1" x 1/2" £3.05 77% £0.70
353201ABS Reducing Bush Plain 1" x 3/4" £2.91 77% £0.67
353202ABS Reducing Bush Plain 1 1/4" x 1" £3.76 77% £0.86
353203ABS Reducing Bush Plain 1 1/2" x 3/4" £5.10 77% £1.17
353204ABS Reducing Bush Plain 1 1/2" x 1" £4.86 77% £1.12
353205ABS Reducing Bush Plain 1 1/2" x 1 1/4" £5.10 77% £1.17
353206ABS Reducing Bush Plain 2" x 1" £6.82 77% £1.57
353207ABS Reducing Bush Plain 2" x 1 1/4" £6.82 77% £1.57
353208ABS Reducing Bush Plain 2" x 1 1/2" £6.50 77% £1.50
359994ABS Reducing Bush Plain 2 1/2" x 1 1/2" £11.55 77% £2.66
353209ABS Reducing Bush Plain 2 1/2" x 2" £11.55 77% £2.66
353210ABS Reducing Bush Plain 3" x 1 1/2" £19.95 77% £4.59
353211ABS Reducing Bush Plain 3" x 2" £19.95 77% £4.59
353212ABS Reducing Bush Plain 3" x 2 1/2" £19.95 77% £4.59
353213ABS Reducing Bush Plain 4" x 2" £24.90 77% £5.73
353214ABS Reducing Bush Plain 4" x 3" £24.90 77% £5.73
353215ABS Reducing Bush Plain 5" x 4" £71.88 77% £16.53
353216ABS Reducing Bush Plain 6" x 4" £76.66 77% £17.63
353217ABS Reducing Bush Plain 8" x 6" £275.99 77% £63.48
