Approvals: WRAS approval 1703070 where applicable, BSI Kitemark KM60042
Temperature range: -40°C to 60°C
Standards: BS 5392, BS 5391, EN 10226 1, DIN 2999, DIN DVS 2204 3
Chemical resistance: Resistant to diluted inorganic acids, salts, animal fats, oils and organic acids, not suitable for organic solvents, petrol, alcohol, acetic acid or vegetable oils
Applications: System terminations, dead-end lines, testing points and isolation of unused ABS pipe sections
Description
This plain ABS end cap is designed to close off the end of an ABS pipe, providing a secure and permanent termination within a pressure or process system. Once installed using ABS solvent cement and cleaner, it forms a strong, leak resistant seal that prevents fluid ingress or escape. The fitting is moulded from high grade ABS, offering reliable impact resistance, minimal moisture absorption and long lasting performance even in demanding industrial environments. Its simple push-fit solvent weld design ensures quick installation and a clean finish wherever a pipeline needs to be safely capped.
Key Features & Benefits
Secure pipe termination: Provides a permanent closure for unused or isolated sections of ABS pipework
Strong solvent welded seal: Forms a durable watertight joint using ABS solvent cement
Ideal for testing and commissioning: Suitable for temporary or permanent line closures
Robust ABS construction: Resistant to impact and deformation during service
Good chemical compatibility: Suitable for systems handling many diluted industrial chemicals
WRAS and Kitemark approved: Verified to recognised UK quality and performance standards
Lightweight and easy to handle: Enables quick installation with minimal effort

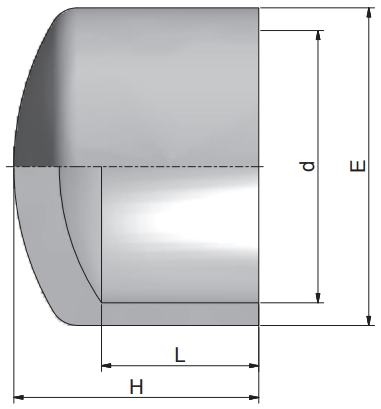

Product Code
Nominal Size (inch)
L (mm)
H (mm)
E (mm)
353028
1/2
17
30
27
353029
3/4
20
34
33
353030
1
23
38
42
353031
1 1/4
27
43
50
353032
1 1/2
32
48
61
353033
2
38
56
75
353034
2 1/2
44
67
89
353035
3
51
78
106
353036
4
63
81
133
353037
6
90
127
198
353038
8
119
165
255
