Elbow 90° Plain x Thread F

Useful Information

Our ABS elbow 90° plain x threaded F fittings are available in sizes 1/2" to 3".

Used to join together two pieces of ABS pipe of the same dimensions at an angle of 90°. ABS solvent cement should be used along with cleaner to glue the pipe together.

Threaded end included in this fitting is standard BSP.



Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approval 1703070 (where applicable)

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approved

Licence number KM60042

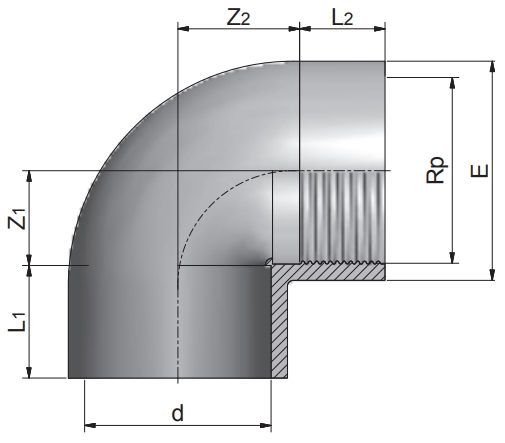

ABS-threaded-elbow-90-Diagram


Product Code Nominal Size (inch) L1 (mm) L2 (mm) Z1 (mm) Z2 (mm) E (mm)
353136 1/2 17 15 11 12 28
353137 3/4 20 16 14 17 34
353138 1 23 19 17 20 42
353139 1 1/4 27 21 21 27 51
353140 1 1/2 32 21 26 37 61
353141 2 39 26 33 46 75
353142 3 51 35 47 66 106
