Approvals: WRAS approval 1703070 where applicable, BSI Kitemark KM60042 for selected sizes
Temperature range: -40°C to 60°C
Standards: BS 5391, BS 5392, EN 10226 1, DIN 2999, DIN DVS 2204 3
Chemical resistance: Resistant to diluted inorganic acids, salts, animal fats, oils and organic acids, not resistant to organic solvents, alcohol, petrol, acetic acid or vegetable oils
Applications: Food and beverage processing, water treatment, sewerage systems and general industrial pipework
Description
Designed for creating a 90 degree directional change within an ABS pipe system, this fitting provides a secure and smooth transition between two pipes of the same size. When installed using ABS solvent cement and cleaner, it forms a strong permanent joint suitable for both new pipework and system modifications. Manufactured from high quality ABS, it offers excellent impact resistance, minimal moisture absorption and reliable performance across a wide temperature range. Its lightweight construction and consistent moulding help ensure quick installation and dependable alignment on site.
Key Features & Benefits
Accurate 90 degree turn: Provides a clean and precise directional change in ABS pipework
Strong solvent weld joint: Ensures a permanent connection when used with ABS cement and cleaner
Lightweight and rigid: Easy to handle while maintaining structural stability
Durable ABS material: High impact resistance for long service life
Chemical resistance: Suitable for many diluted chemicals used in industrial systems
WRAS and Kitemark approved: Complies with recognised UK performance and safety standards
Smooth internal bore: Promotes efficient flow with minimal turbulence through the bend

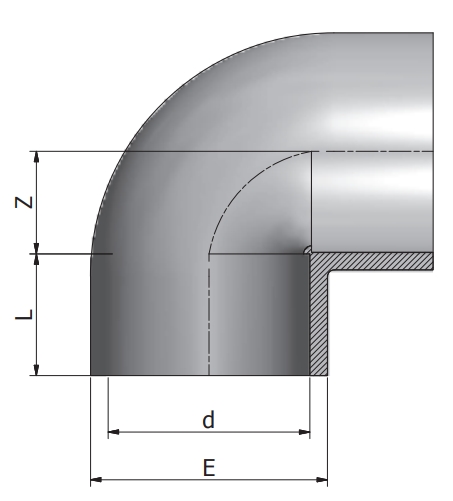

Product Code
Nominal Size (inch)
L (mm)
Z (mm)
E (mm)
353124
1/2
17
11
27
353125
3/4
20
14
33
353126
1
23
17
41
353127
1 1/4
27
23
51
353128
1 1/2
32
28
61
353129
2
38
34
75
353130
2 1/2
44
40
89
353131
3
52
48
106
353132
4
63
58
133
353133
5
76
72
164
353134
6
90
81
198
353135
8
119
115
258
