Bend 90° Plain

Useful Information

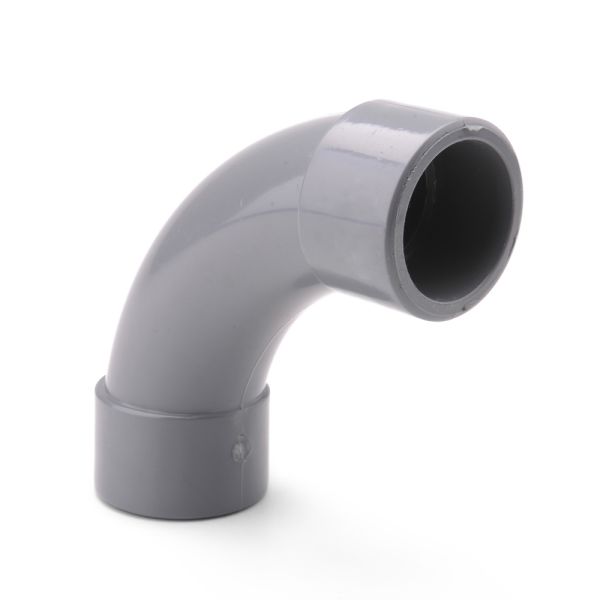

Our ABS bend 90° plain fittings are available in sizes 1/2" to 4".

This fitting is used to join together two pieces of ABS pipe of the same dimensions at an angle of 90°. ABS solvent cement should be used along with cleaner to glue the pipe together.



Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approval 1703070 (where applicable)

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approved

Licence number KM60042

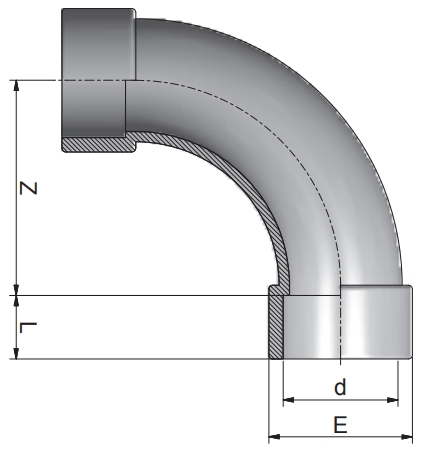

ABS-Bend-90-Diagram


Product Code Nominal Size (inch) L (mm) Z (mm) E (mm)
353086 1/2 17 40 30
353087 3/4 20 50 36
353088 1 23 64 44
353089 1 1/4 27 80 54
353090 1 1/2 32 100 63
353091 2 39 126 78
353092 2 1/2 44 150 94
353093 3 51 180 113
353094 4 63 220 133



IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
353086ABS Bend 90 Swept Plain 1/2" £15.52 80% £3.10
353087ABS Bend 90 Swept Plain 3/4" £18.09 80% £3.62
353088ABS Bend 90 Swept Plain 1" £26.56 80% £5.31
353089ABS Bend 90 Swept Plain 1 1/4" £38.09 80% £7.62
353090ABS Bend 90 Swept Plain 1 1/2" £47.70 80% £9.54
353091ABS Bend 90 Swept Plain 2" £81.77 80% £16.35
353092ABS Bend 90 Swept Plain 2 1/2" £131.62 80% £26.32
353093ABS Bend 90 Swept Plain 3" £161.82 80% £32.36
353094ABS Bend 90 Swept Plain 4" £323.86 80% £64.77
