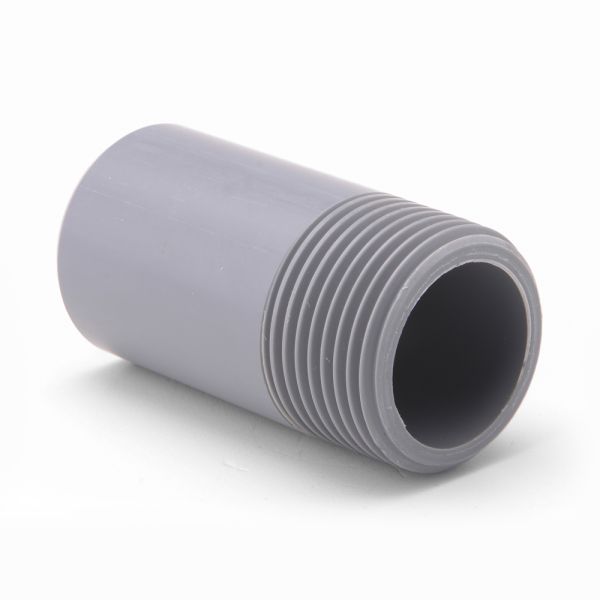

Barrel Nipple Plain M x Thread M

Useful Information

Our ABS barrel nipple plain M x thread M fittings are available in sizes 1/4" to 4".

Used to join plain end into ABS pipe. ABS solvent cement should be used along with cleaner to glue the pipe together.

Threaded end included in this fitting is standard BSPT.



Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approval 1703070 (where applicable)

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approved

Licence number KM60042

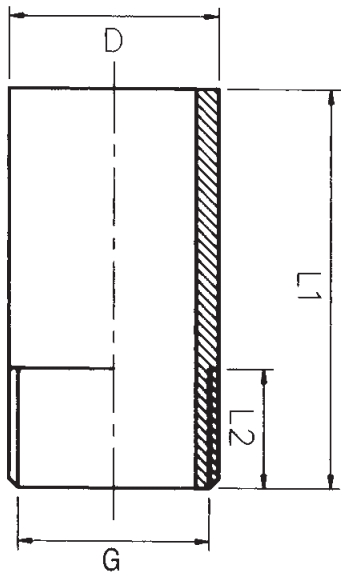

ABS-barrel-nipple-Diagram


Product Code Nominal Size (inch) L1 (mm) L2 (mm)
353007 1/4 - -
353008 3/8 42 13
353009 1/2 50 16
353010 3/4 56 17
353011 1 63 20
353012 1 1/4 75 24
353013 1 1/2 88 30
353014 2 88 32
353015 2 1/2 106 35
353016 3 128 39
353017 4 153 43



IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
353009ABS Barrel Nipple Plain x Threaded 1/2" £7.71 76% £1.85
353010ABS Barrel Nipple Plain x Threaded 3/4" £9.62 76% £2.31
353011ABS Barrel Nipple Plain x Threaded 1" £12.30 76% £2.95
353012ABS Barrel Nipple Plain x Threaded 1 1/4" £16.96 76% £4.07
353013ABS Barrel Nipple Plain x Threaded 1 1/2" £23.22 76% £5.57
353014ABS Barrel Nipple Plain x Threaded 2" £32.04 76% £7.69
353015ABS Barrel Nipple Plain x Threaded 2 1/2" £55.74 76% £13.38
353016ABS Barrel Nipple Plain x Threaded 3" £69.68 76% £16.72
353017ABS Barrel Nipple Plain x Threaded 4" £113.93 76% £27.34
