Composite Union Plain F x Thread F Brass

Useful Information

Our ABS composite union plain F x thread F brass fittings are available in sizes 1/2" to 3".

Used to join together two pieces of ABS pipe of the same dimensions with the ability to separate later. ABS solvent cement should be used along with cleaner to glue the plain end and the pipe together.

Threaded end included in this fitting is standard BSP.



Approvals:

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approved

Licence number KM60042

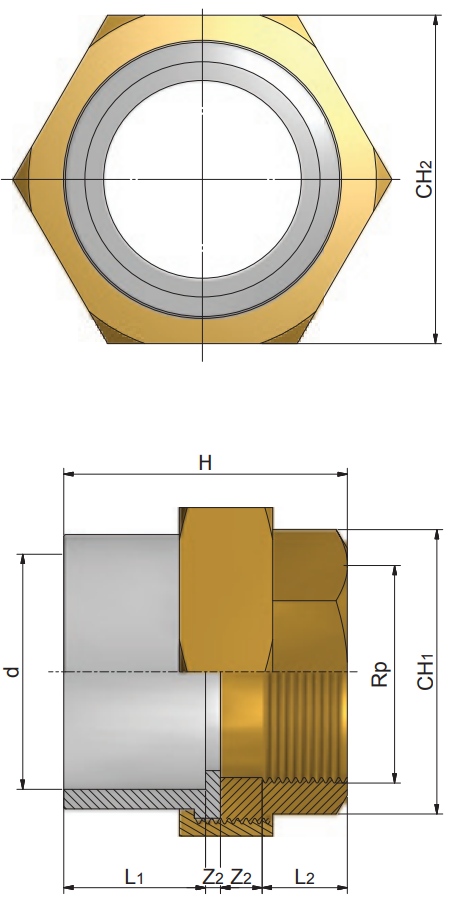

ABS-composite-union-Diagram


Product Code Nominal Size (inch) E (mm) L1 (mm) Z1 (mm) Z2 (mm)
352991 1/2 28 45 3 8
352992 3/4 36 49 3 8
352993 1 42 52 3 8
352994 1 1/4 53 60 3 8
352995 1 1/2 59 68 3 9
352996 2 74 81 3 10
352997 2 1/2 93 94 3 16
352998 3 105 103 5 14



IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
352991ABS Composite Union Plain x Threaded Female Brass 1/2" £58.81 76% £14.11
352992ABS Composite Union Plain x Threaded Female Brass 3/4" £78.83 76% £18.92
352993ABS Composite Union Plain x Threaded Female Brass 1" £106.38 76% £25.53
352994ABS Composite Union Plain x Threaded Female Brass 1 1/4" £167.14 76% £40.11
352995ABS Composite Union Plain x Threaded Female Brass 1 1/2" £231.59 76% £55.58
352996ABS Composite Union Plain x Threaded Female Brass 2" £310.08 76% £74.42
352997ABS Composite Union Plain x Threaded Female Brass 2 1/2" £609.93 76% £146.38
352998ABS Composite Union Plain x Threaded Female Brass 3" £676.71 76% £162.41
