Useful Information

Our ABS adaptor plain F x thread M fittings are available in sizes 1/2" to 4".

Used to join together two pieces of ABS pipe of the same dimensions. ABS solvent cement should be used along with cleaner to glue the plain end and the pipe together.

Spigot with female plain end and male threaded end.

Threaded end included in this fitting is standard BSP.



Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approval 1703070 (where applicable)

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approved

Licence number KM60042

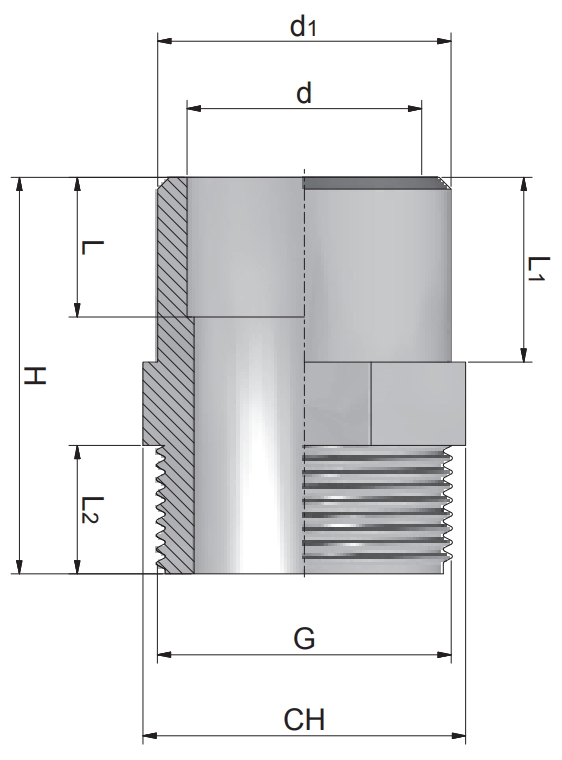

ABS-Mthreaded-plain-adaptor-Diagram

Product Code Nominal Size (inch) L1 (mm) L2 (mm) L3 (mm) H (mm) O (mm)
352971 1/2 17 19 15 46 30
352972 3/4 20 22 16 50 36
352973 1 23 27 19 57 46
352974 1 1/4 27 32 21 66 55
352975 1 1/2 32 39 21 74 65
352976 2 39 44 25 84 80
352977 3 52 61 33 113 115
352978 4 63 39 39 120 130



IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
Code Product Name List Price You Save You Pay Quantity
352971 ABS Adaptor Female Plain x Threaded Male 1/2" £6.93 76%
You Pay:  £1.66
352972 ABS Adaptor Female Plain x Threaded Male 3/4" £9.04 76%
You Pay:  £2.17
352973 ABS Adaptor Female Plain x Threaded Male 1" £12.43 76%
You Pay:  £2.98
352974 ABS Adaptor Female Plain x Threaded Male 1 1/4" £17.14 76%
You Pay:  £4.11
352975 ABS Adaptor Female Plain x Threaded Male 1 1/2" £22.30 76%
You Pay:  £5.35
352976 ABS Adaptor Female Plain x Threaded Male 2" £31.93 76%
You Pay:  £7.66
352977 ABS Adaptor Female Plain x Threaded Male 3" £91.80 76%
You Pay:  £22.03
352978 ABS Adaptor Female Plain x Threaded Male 4" £123.33 76%
You Pay:  £29.60
